Description

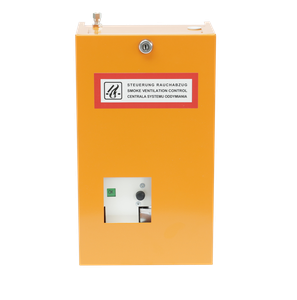

The alarm box uses the built-in RTC trigger to activate disposable CO2 cylinders. The RTC trigger can be activated by manually pressing the triggering button, by activating the electromagnet or by activating the pneumatic trigger. The valve is located behind a glass sheet, which is smashed in for manual activation in the event of an alarm. The housing is made of steel sheet and is available in either orange (RAL2011) or red (RAL3000). The operating status is visualized via the integrated visual display.
The box is prepared for a 6 mm pipe connection as standard, but is also available for an 8 mm pipe connection on request.
The standard CO2 cylinder thread is 1/2” UNF. We recommend the use of our CO2 cylinders up to 1500 gr.
Replacement material
- Replacement disk RT-E
- Clamping device for RTC-1/2 “UNF/M18x1,5
Specifications
- Max. Operating pressure 80 bar
- Nominal width of the valve 4,0 mm
- Nominal width of the actuating needle 2,0 mm
- Nominal data electric actuator 0,29 A / 24 VDC
- Actuation pressure pneumatic release 6 bar
- Ambient temperature range -5 °C to +55 °C
Variants
- AK xy x = number of bottles to open
- AK xy y = number of bottles to close
- AK xy.3 max. bottle size 150 gr
- AK xy.5 max. bottle size 500 gr
- AK xy.7 max. bottle size 750 gr
- AK xy.9 max. bottle size 1500 gr
- OR crate color orange (RAL2011)
- RT crate color red (RAL3000)
- HA Manual release OPEN
- HEA Manual / electric release OPEN
- HPA Manual / pneumatic release OPEN
- HA-HZ Manual release OPEN / CLOSE
- HEA-HZ Manual / electric release OPEN / manual release CLOSED
- HPA-HZ Manual / pneumatic release OPEN / manual release CLOSED
- SR For CO2 standpipe cylinders with M18x1.5 thread
- R Spare cylinder holder
- DS230 built-in pressure switch DS-W-230 in the OPEN line
- Ø8 Pipe connection 8 mm
Accreditations
VdS: G507003
