Description

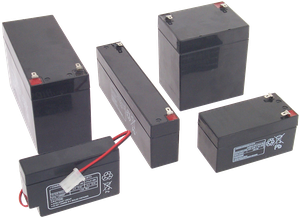

Accumulators ensure that our control centres and controls remain functional for at least 72 hours even in the event of a power failure and are ready for use in an emergency. Our systems use maintenance-free, sealed lead accumulators of the VRLA-AGM type.
You can select the right accumulators for your requirements below. Please note that the nominal capacity values may vary slightly depending on availability.
Please note the approved accumulators for use in our SHEV control units and control systems.
Specifications
- Nominal voltage 12 VDC
- Nominal capacity 0,8 Ah to 65,0 Ah
- Service life 1200 cycles
Variants
- Akku 12V / 0,8Ah AMP - plug connector
- Akku 12V / 2,0Ah flat connector 4,8 x 0,8 mm
- Akku 12V / 7,0Ah flat connector 4,8 x 0,8 mm
- Akku 12V / 12,0Ah flat connector 6,3 x 0,8 mm
- Akku 12V / 17,0Ah screw connection M5
- Akku 12V / 26,0Ah screw connection M5
- Akku 12V / 42,0Ah screw connection M6
- Akku 12V / 65,0Ah screw connection M6
Accreditations
VdS
Control centres
IS 3b
