Description

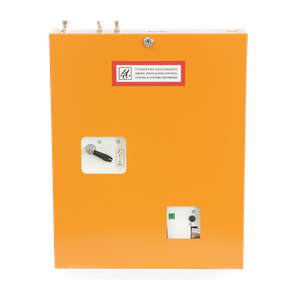

The ALK alarm and ventilation box uses the built-in RTC trigger to activate disposable CO2 one-way bottles. The RTC trigger can be activated by manually pressing the trigger button, by activating the electromagnet or by activating the pneumatic trigger. The valve is located behind a glass sheet, which is smashed in for manual activation in the event of an alarm. The housing is made of sheet steel and is available in either orange (RAL2011) or red (RAL3000). The operating status is visualized via the integrated visual display.
The box is prepared for a 6 mm pipe connection as standard, but is also available for an 8 mm pipe connection on request.
The standard CO2 bottle thread is 1/2” UNF. We recommend the use of our CO2 bottles up to 1500 gr.
In addition, the ALK alarm and ventilation box contains a built-in priority and ventilation valve that can be configured with other attachments, allowing it to be controlled for example via a wind and rain control system. The desired operating pressure for ventilation can be set via the built-in filter regulator with operating pressure gauge, water separator and condensate drain plug.
Replacement material
- Replacement disk RT-E
- Clamping device for RTC-1/2 “UNF/M18x1.5
Specifications
- Max. Operating pressure RTC 80 bar
- Nominal width of the valve 4,0 mm
- Nominal width of the piercing needle 2,0 mm
- Rated current and voltage of electrical release 0,29 A / 24 VDC
- Actuation pressure pneumatic release 6 bar
- Max. Inlet pressure P 16 bar
- Max. Operating pressure with electrical attachment 10 bar
- Max. Max. operating pressure with filter regulator 8 bar
- Nominal data electrical attachment 0,04 A / 230 VDC
- Ambient temperature range -5 °C to +55 °C
Variants
- AK 10 A bottle to open
- AK 11 One bottle to open, one bottle to close
- AK xy.5 max. bottle size 500 gr
- AK xy.9 max. bottle size 1500 gr
- OR crate color orange (RAL2011)
- RT crate color red (RAL3000)
- HA Manual release OPEN
- HEA Manual / electric release OPEN
- HPA Manual / pneumatic release OPEN
- HA-HZ Manual release OPEN / CLOSE
- HEA-HZ Manual / electric release OPEN / manual release CLOSED
- HPA-HZ Manual / pneumatic release OPEN / manual release CLOSED
- R Spare bottle holder
- DS230 Built-in pressure switch DS-W-230 in the OPEN line
- EZ230 Electrical CLOSE 230 VAC
- EA230-EZ230 Electrical OPEN / CLOSE 230VAC
- EZS230 Electrical CLOSED 230 VAC (normally closed)
- Ø8 Pipe connection 8 mm
