Description

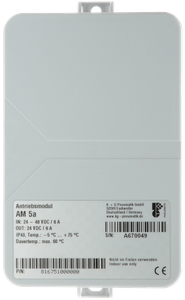

The drive module is used to control a 24 VDC actuator of the SG1Bx or SG1Cx series on a smoke and heat exhaust ventilation unit (SHEV). The input voltage can be in the range of 24 VDC to 48 VDC.
A power control can be activated via DIP switch. The power control affects the ratio of force to speed of the actuator. When the control is activated, the actuator´s speed is reduced and the thrust is increased.
Specifications
- Spannungsversorgung 24 bis 48 VDC
- Ausgangsstrom 24 VDC max. 8,0 A
- Ausgangsstrom 48 VDC max. 4,0 A
- Umweltklasse I -5 °C bis +75 °C
- Gehäuseschutzart IP54
- Abmessungen 130 mm x 85 mm x 37 mm
- Power supply 24 to 48 VDC
- Output current 24 VDC max. 8,0 A
- Output current 48 VDC max. 4,0 A
- Environmental class I -5 °C to +75 °C
- Housing protection class IP54
- Dimensions 130 mm x 85 mm x 37 mm
