Description

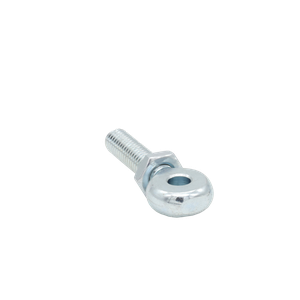

Eyebolts made of galvanized steel, including locknut.
They are used for screwing into pneumatic cylinders and electric actuators to create a connection to mechanical components, such as coupling brackets, hook locks, operating levers, etc.
Pneumatic cylinders and electric actuators are equipped with eyebolts as standard ex works.
Special designs are available upon request.
Specifications
- External thread M8, M10 or M12
- Length 40 mm, 60 mm, 65 mm, 80 mm or 90 mm
- Hole diameter 6 mm, 8 mm, 10 mm or 12 mm
Variants
- Augenschraube M8 x 40 Ø6 eyebolt, hole diameter 6 mm
- Augenschraube M8 x 40 Ø8 eyebolt, hole diameter 8 mm
- Augenschraube M8 x 40 Ø10 eyebolt, hole diameter 10 mm
- Augenschraube M8 x 60 Ø8 eyebolt, hole diameter 8 mm
- Augenschraube M8 x 60 Ø10 eyebolt, hole diameter 10 mm
- Augenschraube M8 x 80 Ø8 eyebolt, hole diameter 8 mm
- Augenschraube M8 x 80 Ø10 eyebolt, hole diameter 10 mm
- Augenschraube M10 x 60 Ø8 eyebolt, hole diameter 8 mm
- Augenschraube M10 x 60 Ø10 eyebolt, hole diameter 10 mm
- Augenschraube M10 x 90 Ø8 eyebolt, hole diameter 8 mm
- Augenschraube M10 x 90 Ø10 eyebolt, hole diameter 10 mm
- Augenschraube M12 x 65 Ø12 eyebolt, hole diameter 12 mm
SG actuator
S actuator
G actuator
E actuator
E2 actuator
P pneumatic cylinder
D double stroke cylinder
PL ventilation cylinder
