Description

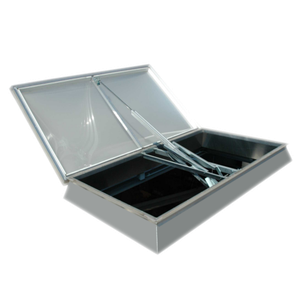

This electrically operated mounting for installation in skylight domes or continuous rooflights can be fitted simply by hooking it into the curb or frame from above.
The cross beam design means that only low forces are transferred to the curb and the vent frame. Thanks to its flat design, the fitting is particularly space-saving.
In closed position, the domelight is latched by the mechanical hook locking device MHV and an adjustable locking bolt EVB3-M12.
The opening mounting is available in a fixed cross beam version and an adjustable cross beam version. The adjustable version can be adapted to the structural conditions ex works. Please enclose the dimension sheet with your order.
Specifications
- Opening angle 140° or 165°
- Clear width of curb or frame/light band opening: approx. 780 mm to 2.100 mm
- Sizes 1 to 5
- Drives type G or SG
- Voltage 24 VDC / 48 VDC (SG+AM5)
- Snow load and opening time depending on selection of actuator
- Ambient temperature range -25 °C to +60 °C
Variants
- BGx.11 Fixed version for upstands
- BGx.12 Length-adjustable for upstands and frames
- BGx.13 Length and angle adjustable for continuous rooflight openings
- AM5 drive module with 48 VDC power supply
MHV mechanical hook locking device
EVB adjustable locking bolt
AM 5a SG actuator´s drive module
