Description

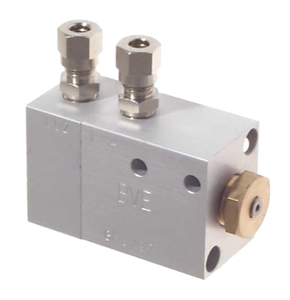

This VdS approved exhaust valve is designed for exhausting a SHEVS cylinder while following idle.
In normal position, the CA outlet has exhausted, allowing the SHEVS cylinder to be pulled along by a ventilation actuator. When the CO2 inlet is charged with a pressure, the valve reverses, connecting the CO2 inlet to the CA outlet. After a system exhaust, the valve will automatically reset.
For pipe connection of the valve, two male connectors 1/8″ (e.g. B 1-6/-1/8") will be required additionally.
The design of the SHEVS may require reliable exhausting of the piping.
Specifications
- Maximum operating pressure 80 bar
- Nominal width of the valve 4,0 mm
- Connection thread 1/8"
- Ambient temperature range -25 °C to +110 °C
Variants
- BVE CO2-Eingang oben valve inlet from top
- BVE-2xB1-6/4 exhaust valve including straight screw fittings with 6 mm pipe connection
Accreditations
VdS G598002
