CO2 bottles

de

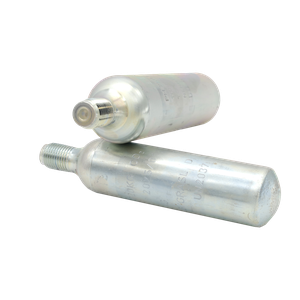

CO 2-Flaschen

Description

Our CO2 bottles for SHEV systems provide the energy needed to open pneumatic cylinders in the event of a fire.

Can be used in our thermal valves or alarm boxes.

The nominal temperature of the thermal bulbs used shall not exceed the nominal temperature of the CO2 bottle.

Different filling quantities and temperatures on request.

Specifications

  • CO2 gas mass 20 g to 1500 g
  • Operating temperature from 50 °C to 182 °C
  • Tested by pressure 25 MPa

Variants

  • 1/2“-20UNF-1A standard bottle thread
  • 20 gr, Ø26 mm x 115 mm, nominal temperature 93°C
  • 24 gr, Ø26 mm x 115 mm, nominal temperature 68°C
  • 38 gr, Ø30 mm x 144 mm, nominal temperature 93°C
  • 40 gr, Ø30 mm x 144 mm, nominal temperature 68°C
  • 55 gr, Ø35 mm x 159 mm, nominal temperature 93°C
  • 75 gr, Ø30 mm x 205 mm, nominal temperature 50°C
  • 80 gr, Ø35 mm x 217 mm, nominal temperature 93°C
  • 120 gr, Ø50 mm x 178 mm, nominal temperature 93°C
  • 150 gr, Ø50 mm x 178 mm, nominal temperature 68°C
  • 300 gr, Ø50 mm x 315 mm, nominal temperature 50°C
  • 500 gr, Ø60 mm x 342 mm, nominal temperature 50°C
  • 750 gr, Ø60 mm x 490 mm, nominal temperature 50°C
  • 1000 gr, Ø80 mm x 382 mm, nominal temperature 50°C
  • 1500 gr, Ø80 mm x 525 mm, nominal temperature 50°C

  • M18x1,5 (SR) rising pipe bottles with M18x1,5 thread
  • 25 gr, Ø40 mm x 160 mm, nominal temperature 93°C
  • 45 gr, Ø40 mm x 179 mm, nominal temperature 93°C
  • 85 gr, Ø40 mm x 294 mm, nominal temperature 93°C
  • 125 gr, Ø40 mm x 294 mm, nominal temperature 68°C
  • 150 gr, Ø60 mm x 178 mm, nominal temperature 50°C
  • 300 gr, Ø51 mm x 328 mm, nominal temperature 50°C
  • 500 gr, Ø60 mm x 360 mm, nominal temperature 50°C
  • 750 gr, Ø83 mm x 302 mm, nominal temperature 50°C
  • 1000 gr, Ø83 mm x 377 mm, nominal temperature 50°C
  • 1500 gr, Ø83 mm x 505 mm, nominal temperature 50°C

  • NF bottle thread W21,8x1/14"
  • 25 gr, Ø30 mm x 150 mm, nominal temperature 93°C
  • 40 gr, Ø30 mm x 211 mm, nominal temperature 93°C
  • 80 gr, Ø50 mm x 184 mm, nominal temperature 93°C
  • 120 gr, Ø50 mm x 239 mm, nominal temperature 93°C

  • NFM bottle thread M15x1,25
  • 25 gr, Ø30 mm x 150 mm, nominal temperature 93°C
  • 40 gr, Ø30 mm x 211 mm, nominal temperature 93°C
  • 120 gr, Ø50 mm x 239 mm, nominal temperature 93°C
  • 300 gr, Ø50 mm x 315 mm, nominal temperature 50°C
  • 500 gr, Ø60 mm x 342 mm, nominal temperature 50°C
