Description
The pressure switch is supplied in a galvanized steel housing and is used for electrically monitoring a compressed air line.
If the pre-set threshold (5 bar by default) is exceeded, the pressure switch is activated.
The pressure switch is also available as factory-installed in our AK alarm boxes with RTC triggering valve.
Specifications
- Factory switching pressure 5 bar
- Switching tolerance ±0,5 bar
- Connection thread 1/4"
- Protection class IP65 (terminals: IP00)
- Ambient temperature range -30 °C to +120 °C
Variants

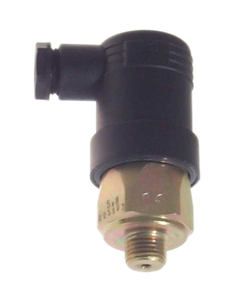

- DS-W-230 5 bar changeover contact, switching capacity 4A / 230V AC
- Accessories Angle connector for DS-W-230

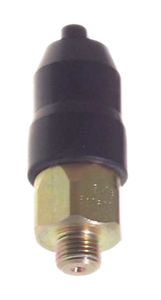

- DS-S-42 5 bar normally open contact, switching capacity 42 V / 100 VA
- Accessories Protective cap DS-S-42
