Description

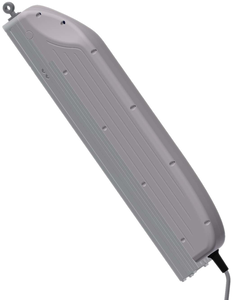

Electric rack actuator for smoke and heat exhaust or automated natural ventilation. It is installed in devices such as skylight domes, louvre devices or roof flaps.
The drive is supplied with Ø8 eyebolt, bearing pins with screws (LB12-SL13-M5x16) and sliding blocks. Additional mounting material (mounting bracket, coupling bracket, etc.) is available separately.
Different stroke is available on request.
Specifications
- Rated voltage 230 VAC, 50 Hz to 60 Hz
- Push / pull force 1000 N / 1000 N
- Running speed approx. 18 mm/s
- Ambient temperature -25 °C to +60 °C
- Electronic switch-off in case of overload
- Operating mode / duty cycle S3 30 %
- Housing protection class IP54
- Housing plastic (grey) / aluminum
Variants
- E2-300-230 stroke length 300 mm
- E2-500-230 stroke length 500 mm
- E2-750-230 stroke length 750 mm
- E2-1000-230 stroke length 750 mm
KB coupling bracket
MK mounting bracket
