Description
The ETK is used to electrically trigger a thermal valve by destroying the thermo bulb.
The electrically actuating push-piston is screwed into the bracket of a thermal valve. The bracket of the valve must have an M16x1,5 thread (option H).
Specifications
- Operating voltage 24 VDC
- Power 3,5 W
- Connection thread M16x1,5
- Protection class electromagnet IP65
- Ambient temperature range -25 °C to +60 °C
Variants
- ETK 1.0 for TA2
- Electrically actuating push-piston ETK 1.0 for the TA2 valve series
- ETK 1.0 for TA3
- Electrically actuating push-piston ETK 1.0 for the TA3 valve series

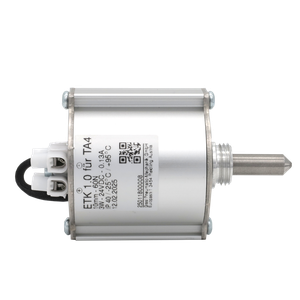

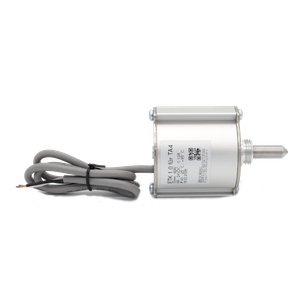

- ETK 1.0 for TA4
- Electrically actuating push-piston ETK 1.0 for the TA4 valve series
- ETK 1.1 for TA2
- Electrically actuating push-piston ETK 1.0 for the TA2 valve series including junction box
- ETK 1.1 for TA3
- Electrically actuating push-piston ETK 1.0 for the TA3 valve series including junction box

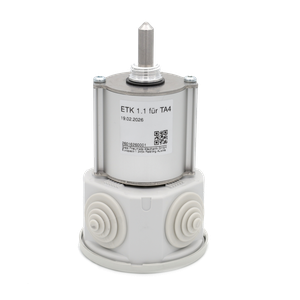

- ETK 1.1 for TA4
- Electrically actuating push-piston ETK 1.0 for the TA4 valve series including junction box
