Description
The EVE exhaust valves are used to exhaust cylinders more quickly and increase cylinder speed.
They are screwed directly (or in close proximity) to the cylinder or valve via port A. They are used, for example, for SHEV cylinders in towed operation by a ventilation drive or ventilation cylinder.
Depending on the design of the SHEV system, the venting of the pipe network must be ensured.
Specifications
- Maximum operating pressure 60 bar
- Minimum switching pressure 2 bar
- Nominal valve diameter 2,0 mm
- Connection thread 1/8"
- Ambient temperature range -25 °C to +110 °C
Variants

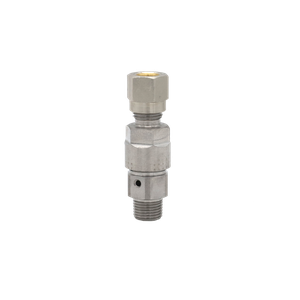

- EVE Ø6-1/8"
- Exhaust valve for direct screwing into a 1/8" thread (e.g. TA4 inlet VA / VZ) for a Ø6 mm connecting line.

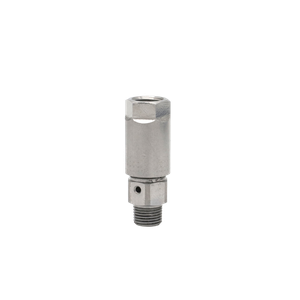

- EVE 1/8"-1/8"
- Exhaust valve for variable use with different line diameters using separately available 1/8" screw fittings.
