Description

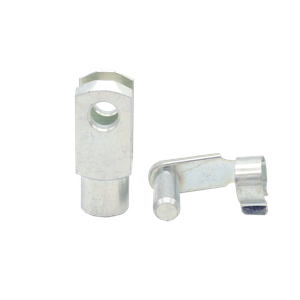

Galvanized steel clevises, including spring-loaded bolts.
They are used to screw onto pneumatic cylinders and electric actuators to create a connection to mechanical components, such as eyebolts, actuating levers, etc.
Pneumatic cylinders and electric actuators can be equipped with eyebolts ex works.
Special designs available upon request.
Specifications
- Internal thread M6, M8 or M10
- Bolt diameter 6 mm, 8 mm or 10 mm
- Fork size 12 mm, 16 mm, 20 mm, 24 mm, 32 mm or 40 mm
Variants
- GK 6/12 fork head with M6 internal thread, bolt diameter 6 mm, fork length 12 mm
- GK 6/24 fork head with M6 internal thread, bolt diameter 6 mm, fork length 24 mm
- GK 8/16 fork head with M8 internal thread, bolt diameter 8 mm, fork length 16 mm
- GK 8/32 fork head with M8 internal thread, bolt diameter 8 mm, fork length 32 mm
- GK 10/20 fork head with M10 internal thread, bolt diameter 10 mm, fork length 20 mm
- GK 10/40 fork head with M10 internal thread, bolt diameter 10 mm, fork length 40 mm
SG actuator
S actuator
G actuator
P pneumatic cylinder
D double stroke cylinder
PL ventilation cylinder
