Description

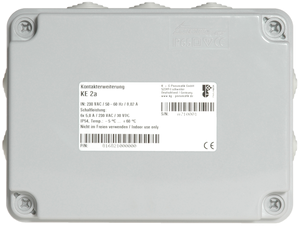

The KE 2 contact extension unit features six 230 VAC relays for expanding a wind and rain control system. However, the KE 2's potential-free contacts can also be used for any other purpose. Each contact expander has terminals that can be used to control additional KE 2 devices.
We supply KE-2a in various special designs upon request (e.g. with a built-in timer for automatically closing 230 VAC ventilation drives).
Specifications
- Netzspannungsversorgung 230 VAC
- Stromaufnahme 0,02 A
- Ausgänge 6
- Kontaktbelastbarkeit 6,3 A
- Umweltklasse 1/III -5 °C bis +60 °C
- Gehäuseschutzart IP54
- Abmessungen 158 mm x 118 mm x 76 mm
- Mains voltage supply 230 VAC
- Current input 0.02 A
- Outputs 6
- Contact rating 6,3 A
- Environmental class 1/III: -5 °C to +60 °C
- Housing protection class IP54
- Dimensions 158 mm x 118 mm x 76 mm
