Description

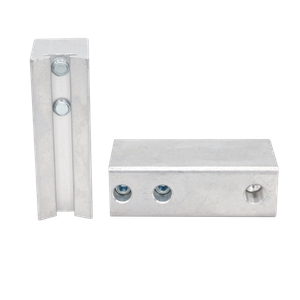

Clamping elements for the continuous suspension of P and D series pneumatic cylinders. Includes M8 mounting screws.
For piping of KST 32, KST 40, and KST 50 clamping rings, two straight screw-in fittings (e.g. B 1-6/4-1/8") and two angled screw-in fittings (e.g. B 5-6/4-1/8") are required.
For piping of KST 63 clamping ring, two double swivel screw fittings (e.g., DSVPM 6-12-63) and two angled screw fittings (e.g. B 5-6/4-1/8") are required.
The clamping rings are not suitable for cylinders with factory-installed center suspension (type PMxx).
Factory installation of the clamping rings to fit the cylinder is recommended.
Accessories
- DSVPM 6-12-63: double swivel screw fitting for KST 63
Specifications
- Mounting width 100 mm
- Connection thread 1/8"
Variants
- KST 32 - clamping ring assembled
- Factory pre-assembled clamping piece for the continuous suspension of POxx 32 / PUxx 32 pneumatic cylinders
- KST 40 - clamping ring assembled
- Factory pre-assembled clamping piece for the continuous suspension of POxx 40 / PUxx 40 / DOxx 40 / DUxx 40 pneumatic cylinders
- KST 50 - clamping ring assembled
- Factory pre-assembled clamping ring for the continuous suspension of POxx 50 / PUxx 50 / DOxx 50 / DUxx 50 pneumatic cylinders
- KST 63 - clamping ring assembled
- Factory pre-assembled clamping piece for the continuous suspension of POxx 63 / PUxx 63 / DOxx 63 / DUxx 63 pneumatic cylinders
