Description

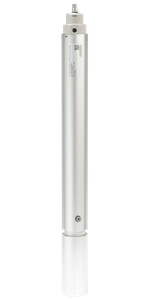

The single-acting air cylinders have a piston diameter of 40 mm and a built-in reservoar. Thanks to the reservoar, opening and closing is possible with just one compressed air line. When pressure is applied, the cylinders open; when deflated, the cylinders retract automatically thanks to the internal compressed air reservoar.
The cylinders are supplied with an eyebolt, a swivel screw fitting and a fixing plug.
Depending on the version, the cylinders are attached at the top or bottom and supplied with compressed air. When retracted, they have a locking mechanism.
The cylinders are used to open and close NSHEV devices such as windows, blinds, flaps and domes for ventilation purposes.
Specifications
- Operating pressure 6 bar to max. 10 bar
- Max. static operating pressure 40 bar
- Piston diameter 40 mm
- Lifting force depending on operating pressure and storage volume
- Connection thread 1/8”
- Ambient temperature range -25 °C to +60 °C
- Maximum holding force of the locks 6.500 N
Variants
- Suspension / locking
- Upper suspension - PO
- Lower suspension - PU
- Retracted locking mechanism
- Eyebolt Ø8 mm or Ø10 mm
- Rod clevis GK6x12, GK6x24, GK8x16, GK8x32, GK10x20 or GK10x40
- Swivel screw fittings
- Pipe connection Ø6 mm or Ø8 mm
- Shank Ø12 mm or Ø18 mm
- Shaft length 9 mm, 13 mm or 18 mm
- Piston rod diameter 12 mm
KB coupling bracket
MK mounting bracket
