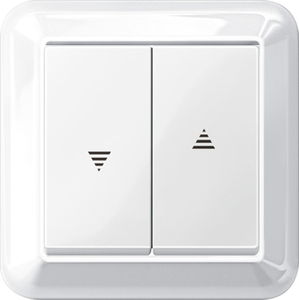

This ventilation button is designed for flush mounting in switch boxes. By actuating, travel commands for opening skylights or domelights are transmitted to the SHEVS Control Centre or Control.
The button is supplied without a frame. Due to its neutral appearance, it blends discreetly into any environment.

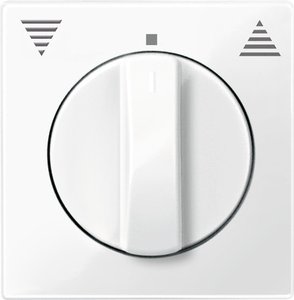

LT-UP-K
Ventilation button, as described above, only for operation with a rotary knob switch.

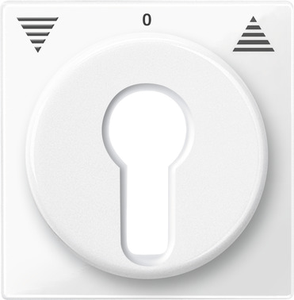

LT-UP-S
Ventilation button, as described above, only for operation with profile half cylinder PHZ (accessory).

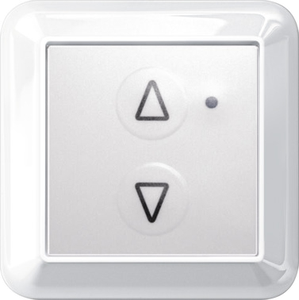

LT 2-UP-A
Ventilation button, as described above, only for operation with membrane buttons and with blue LED to indicate the "OPEN" position.

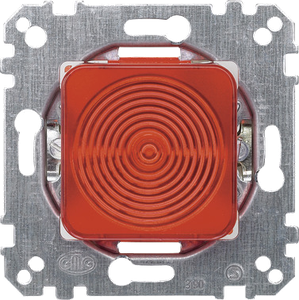

AU
Red flush-mounted indicator in damp-proof design for lamps up to 250 VAC / 3 W for lamp base E10.
Accessories
RU-E Single Frame
RU-D Double Frame
GA-E Single Housing for Surface Mounting
GA-D Double Housing for Surface Mounting
Profile half cylinder PHZ, total length 40 mm (30/10), incl. 3 keys with alike locking
Specifications
Design 1-pole
Contact rating 10 A / 250 VAC
Mounting type Claw / screw mounting
Color polar white
Protection class IP20
Variants
LT-UP Flush-mounted series push button
LT-UP-K Flush-mounted rotary toggle switch
LT-UP-S Flush-mounted key switch
LT 2-UP-A Flush-mounted push button with "Open" position indicator (blue)
AU-230 Flush-mounted indicator with LED light, 230 V / 3 mA
AU-24 Flush-mounted indicator with LED light, 24 V / 20 mA
