Description

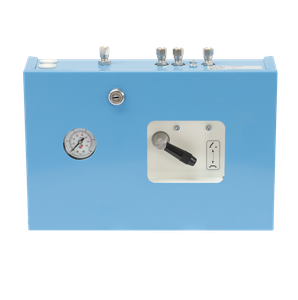

The PLZ pneumatic ventilation control unit includes a built-in ventilation valve that can be combined with a priority valve. The ventilation valve can be configured with additional accessories, allowing it to be controlled, for example, via a wind and rain control system. The desired operating pressure for ventilation can be set using the built-in filter regulator with operating pressure gauge, water separator, and condensate drain screw.
The housing is made of sheet steel and is optionally available in blue (RAL 5012).
The box is prepared for a 6 mm pipe connection as standard, but it is also available for an 8 mm pipe connection upon request.
Specifications
- Eingangsdruck max. 16 bar
- Betriebsdruck mit Elektroanbauteil max. 10 bar
- Betriebsdruck mit Filterregler Max. 8 bar
- Nennweite des Ventils 4,0 mm
- Mindestansteuerdruck für CO2-Anschluss 4 bar
- Nenndaten Elektroanbautel 0,20 A / 24 VDC
- Nenndaten Elektroanbautel 0,04 A / 230 VDC
- Umgebungstemperaturbereich -20 °C bis +60 °C
- Maximum inlet pressure 16 bar
- Operating pressure with electrical add on component max. 10 bar
- Operating pressure with filter regulator max. 8 bar
- Nominal valve diameter 4,0 mm
- Minimum control pressure for CO2 connection 4 bar
- Rated current of electrical add on component 0,20 A / 24 VDC
- Rated current of electrical add on component 0,04 A / 230 VDC
- Ambient temperature range -20 °C to +60 °C
Variants
- PLZ 1y without priority valve for ventilation only
- PLZ 2y with priority valve VVZ for alarm box only OPEN
- PLZ 3y with priority valve VVAZ for alarm box only OPEN/CLOSE
- PLZ x0 external ventilation control
- PLZ x1 internal ventilation control
- PLZ 1y.0.1 without SHEV function, but one ventilation group
- PLZ 1y.0.2 without SHEV function, but two ventilation groups
- PLZ xy.1.1 one SHEV and one ventilation group
- PLZ xy.2.2 two SHEV and two ventilation groups
- EZ230 electrically closed 230 VAC
- EA230-EZ230 electrically open/close 230 VAC
- EZS230 electrically closed 230 VAC (de-energized closed)
- EZ24 electrically closed 24 VDC
- EA24-EZ24 electrically open/close 24 VDC
- EZS24 electrically closed 24 VDC (de-energized)
- OFR without filter regulator
- Ø8 pipe connection 8 mm
WRS 101 wind and rain control
