Description
Our double-acting air cylinders with VdS approval are available with piston diameters of 32 mm, 40 mm, 50 mm, 63 mm and 80 mm.
These are supplied with an eyebolt and two swivel-screw fittings for secure installation.
In addition to the standard stroke lengths, special lengths are available on request. Depending on the version, the cylinder is fitted at the top, middle or bottom and supplied with compressed air. It can also be ordered with locking only in the extended or retracted position or with double locking.
The cylinders are used to open and close NSHEV devices such as windows, blinds, flaps and domes.
The cylinders are also available with ATEX approval.
Special versions on request.
Specifications
- Operating pressure 4 bar to max. 30 bar
- Max. static operating pressure 60 bar
- Lifting force depending on piston diameter and operating pressure
- Standard installation dimension with upper suspension 70 mm, with lower suspension 125 mm + stroke
- Connection thread 1/8”
- Connection thread 1/4” (P80)
- Connection thread M12x1,5 (PM)
- Ambient temperature range -25 °C to +60 °C, according to VdS 2159 for 2 h up to +110 °C
- Maximum holding force of the locks 6.500 N
Variants
- Suspension / locking

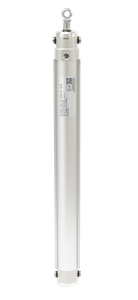

- Upper suspension - PO

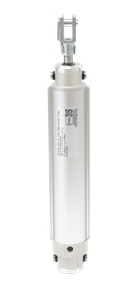

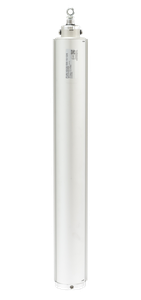

- Bottom suspension - PU

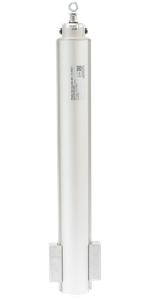

- Middle suspension - PM
- Locking on both sides - DV
- Extended locking mechanism - AV
- Retracted locking mechanism - EV
- Without locking - OV
- Eyebolt Ø8 mm or Ø10 mm
- Clevis head GK6x12, GK6x24, GK8x16, GK8x32, GK10x20 or GK10x40
- Swivel screw connection
- Pipe connection Ø6 mm or Ø8 mm
- Shank Ø12 mm or Ø18 mm
- Shaft length 9 mm, 13 mm or 18 mm
- Piston rod diameter 12 mm, 16 mm, 20 mm or 25 mm
Accreditations
VdS: Ø32 G500008, Ø40 G500009, Ø50 G500010, Ø63 G500011, Ø80 G507006; CNPP: SC190003
