Description
The detectors can be easily and quickly mounted on a standard or relay base thanks to the bayonet lock.

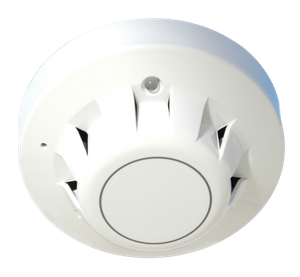

RM 2-O
- The optical smoke detector in compliant with EN 54-7, works with photoelectric detection. If smoke enters the detector during a fire, it scatters the light beam emitted by a light source. This scattered light is captured by a photocell, triggering an alarm.
- The measuring chamber is protected from external influences by an insect screen, among other features, and is insensitive to wind and air pressure. These protective features, combined with multiple signal processing, prevent false alarms.

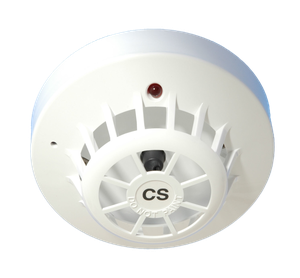

TM 2-M
- The thermal detector in compliant with EN 54-5, triggers an alarm when a certain temperature value is exceeded. In this case, it indicates the alarm via a red LED and reports it to the SHEVS Control Centre.

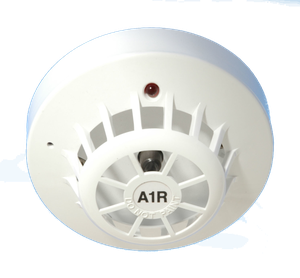

TM 2-D
- The rate-of-rise thermal detector in compliant with EN 54-5, responds if the room temperature increases by more than the limit value within one minute. In this case, it indicates the alarm via a red LED and reports it to the SHEVS Control Centre.
Specifications
General
- Diameter 100 mm
- Height 50 mm (MS 2-S)
- Height 59 mm (MS 2-R)
RM 2-O
- Operating voltage 9 VDC to 33 VDC
- Quiescent current consumption 40 µA / 24 VDC
- Ambient temperature -20 °C to +60 °C
TM 2-M
- Operating voltage 9 VDC to 33 VDC
- Quiescent current consumption 45 µA / 24 VDC
- Ambient temperature -20 °C to +90 °C
TM 2-D
- Operating voltage 9 VDC to 33 VDC
- Quiescent current consumption 45 µA / 24 VDC
- Ambient temperature -20 °C to +90 °C
Variants
- RM 2-O Optical Smoke Detector
- TM 2-M (75°C) Maximum Thermal Detector 75 °C
- TM 2-M (90°C) Maximum Thermal Detector 90 °C
- TM 2-D (57°C) Differential Thermal Detector 57 °C
- MS 2-S Standard Base
- MS 2-R Relay Base with Changeover Contact (max. 1 A / 30 V)
Accreditations
VdS: RM G200017, TM G200062, TM-D G20059
Control centres
IS 3b
