Description

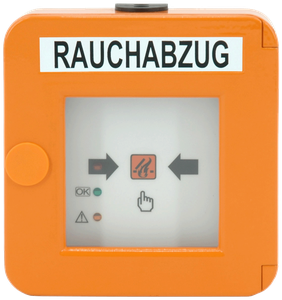

This manual call point can be connected to a SHEVS Control Centre or Control to manually trigger a travel command in the event of a fire. The manual call point is delivered in a robust metal enclosure and available in different versions.
The manual call point is supplied with a key for opening and closing the enclosure during repair or maintenance work.
The operating states are indicated by coloured LEDs. Green stands for trouble-free operation, yellow for malfunction and red for alarm.
Neben der Standard Gehäusefarbe orange (~RAL2011) ist das Gehäuse auf Anfrage auch in den Farben rot (~RAL3000), gelb (~RAL1004), blau (~RAL5009) und grau (~RAL7035) erhältlich.
In addition to the standard housing color orange (~RAL 2011) is also available other colors as red (~RAL3000), yellow (~RAL1004), blue (~RAL5009) and gray (~RAL7035) on request.
Replacement material
- spare glass sheet RT-E
- spare aluminium key RT-S-A
- spare plastic key RT-S-K
Specifications
- Ambient temperature -5 °C to +40 °C
- Protection rating IP30
- Dimensions (W x H x D) 131 mm x 133 mm x 34 mm
Variants

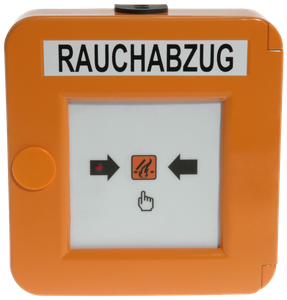

- RT4-OR secondary alarm point
- RT4-OR-BS main alarm point
- RT4-OR-BS-AA main alarm point with warning tone

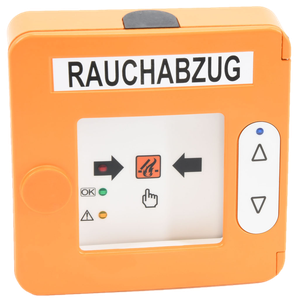

- RT4-OR-BS-LT-A main alarm point with ventilation button and indication of position OPEN
- RT4-OR-BS-LT-A-AA main alarm point with ventilation button, indication of position OPEN and warning tone
Accreditations
ISO 21927-9, VdS 2344 and VdS 2592
Control centres
IS 3b
