Description

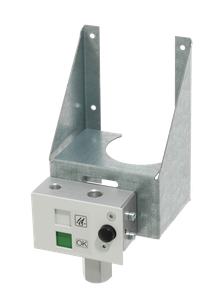

The release valve RTC is a valve which taps a CO2 bottle by pushing the release button, or control the electromagnet, or the pneumatic release, and so the CO2 can flow to the outlet CA. The operating status is visualized via the integrated visual indicator.
A separately available clamping device is required for operation.
The standard CO2 cylinder thread is 1/2" UNF. We recommend using our CO2 cylinders up to 1500 g.
Accessories
- spare glass RT-E
- clamping device for RTC-1/2" UNF/M18x1,5
Specifications
- Max. operating pressure 80 bar
- Valve nominal diameter 4,0 mm
- Nominal bore of the piercing needle 2,0 mm
- Electric actuator rating 0,29 A / 24 VDC
- Pneumatic actuator control pressure 6 bar
- Connection thread 1/8"
- Bottle connection thread 1/2" UNF
- Ambient temperature range -5 °C to +55 °C
Variants
- HA Manual Release Open
- HEA Manual/Electric Release Open
- HPA Manual/Pneumatic Release Open
- HA-HZ Manual Release Open/Close
- HEA-HZ Manual/Electric Release Open/Manual Release Close
- HPA-HZ Manual/Pneumatic Release Open/Manual Release Close
- Mounting bracket with or without spare bottle holder
- Front panel with or without glass panel
- SR for CO2 riser cylinders with M18x1.5 thread
- M18x1,5 For CO2 cylinders with M18x1.5 thread
- S1 Additional connections on the bottom of the valve
Accreditations
VdS: G507003
CO2 bottles
