Description

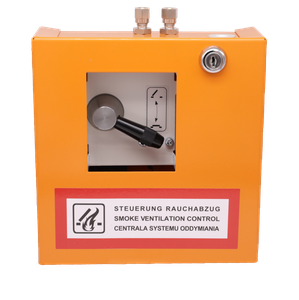

The RTP pneumatic manual call point contains a valve that opens or closes a reserved air system by manually operating the hand lever or by activating the solenoid. The valve is located behind a glass sheet, which is smashed in for manual activation in the event of an alarm. The housing is made of sheet steel and is available in orange (RAL 2011) or red (RAL 3000).
The box is prepared for a 6 mm pipe connection as standard, but can also be supplied for an 8 mm pipe connection upon request.
Spare parts
- Replacement panel RT-E
Specifications
- Max. Betriebsdruck 60 bar
- Max. Betriebsdruck mit Elektroanbauteil 10 bar
- Nennweite des Ventils 6,0 mm
- Nenndaten Elektroanbauteil 0,20 A / 24 VDC
- Umgebungstemperaturbereich -25 °C bis +55 °C
- Max. operating pressure 60 bar
- Max. operating pressure with electromagnet 10 bar
- Nominal diameter of valve 6,0 mm
- Rated current and voltage of electromagnet 0.20 A / 24 VDC
- Ambient temperature range -25 °C to +55 °C
Variants
- OR box color: orange (RAL 2011)
- RT box color: red (RAL 3000)
- EA24 Electric release 24 VDC OPEN
- Ø8 pipe connection 8 mm
