Description

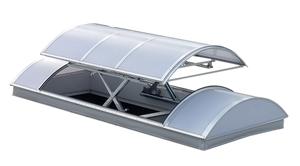

The mounting is used for the vertical opening and closing of devices for natural smoke and heat extraction, such as roof domes or continuous skylights.
The opening mounting was specially developed for large smoke and heat extraction devices up to approximately 10 m² in size.
The AM 5a-S-1 drive module enables synchronous control of the two drives and also enables control with 24 VDC or 48 VDC.
Accessories
- AM 5a-S-1 drive module: Synchronous control for two SG1Bx/SG1Cx drives
Specifications
- Rated voltage 24 VDC / 48 VDC
- Current consumption 8 A (24 V) / 4 A (48 V)
- Lifting force 2 x 1808 N
- Lifting height 800 mm
- Clear width of upstand or frame min. 1.820 mm
- Ambient temperature range -5 °C to +60 °C
