Description
Swivel screw fittings with a steel bolt and nickel-plated brass ring for mounting pneumatic cylinders with 1/8" and 1/4" threads.
Simple swivel screw fitting with one air connection in the SV version, with two air connections via two simple ring pieces in the DSV version, or with two air connections via a double ring piece in the DSV...-C2 version.
Swivel screw fittings available for pipe connections of Ø6 or Ø8 mm, shaft diameters of Ø12 mm or 18 mm, and shaft lengths of 9 mm (standard), 13 mm (L) or 18 mm (XL).
The swivel screw fittings are installed using a 6 mm allen key.
Specifications
- Connection thread 1/8" or 1/4"
- Pipe connection Ø6 mm or Ø8 mm
- Shaft diameter Ø12 mm or Ø18 mm
- Shaft length 9 mm (standard), 13 mm (L) or 18 mm (XL)
Variants

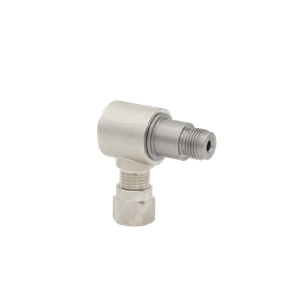

- SV x-12-1/8" swivel screw fitting, shaft diameter 12 mm, shaft length 9 mm, 1/8" connection thread
- SV x-12-1/8"-L swivel screw fitting, shaft diameter 12 mm, shaft length 13 mm, 1/8" connection thread

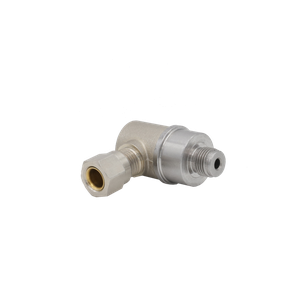

- SVP x-18-1/8" swivel screw fitting, shaft diameter 18 mm, shaft length 9 mm, 1/8" connection thread
- SVP x-18-1/8"-L swivel screw fitting, shaft diameter 18 mm, shaft length 13 mm, 1/8" connection thread

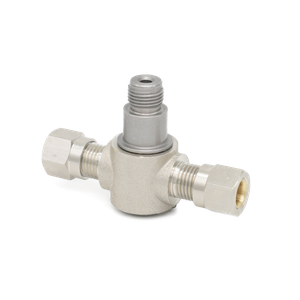

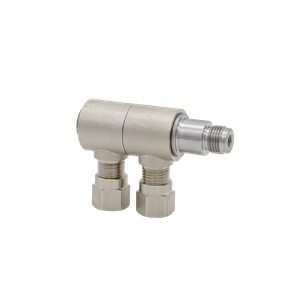

- DSV x-12-1/8" double swivel screw fitting, 12 mm diameter, 9 mm length, 1/8" connection thread
- DSV x-12-1/8"-L double swivel screw fitting, 12 mm diameter, 13 mm length, 1/8" connection thread

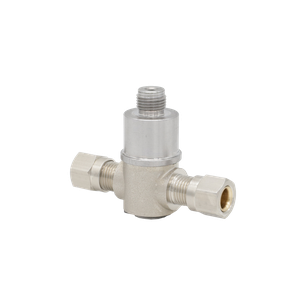

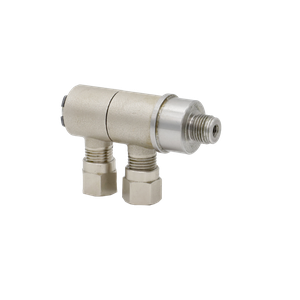

- DSVP x-18-1/8" double swivel screw fitting, 18 mm diameter, 9 mm length, 1/8" connection thread
- DSVP x-18-1/8"-L double swivel screw fitting, 18 mm diameter, 13 mm length, 1/8" connection thread
- x = 6...pipe connection Ø6 mm or 8...pipe connection Ø8 mm
- for the Pxxx 80 cylinders, the swivel screw fittings are also available with a 1/4" thread.
- double swivel screw fittings in the DSV...-C2 version are also available with a double cutting ring.
