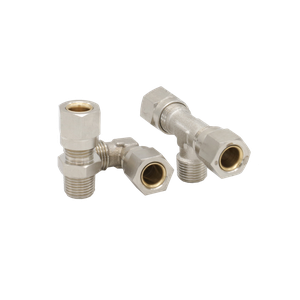

Screw fittings

de
Verschraubungen
B 1-6/4-1/8"
B 2-6/4-1/8"
B 3-6/4
B 4-6/4
B 5-6/4-1/8"
B 6-6/4
B 7-6/4-1/8"
B 8-6/4-1/8"
B 9-6/4

Verschraubungen
B 1-6/4-1/8"
B 2-6/4-1/8"
B 3-6/4
B 4-6/4
B 5-6/4-1/8"
B 6-6/4
B 7-6/4-1/8"
B 8-6/4-1/8"
B 9-6/4

Description

Our screw fittings are made of brass and nickel-plated for corrosion protection. They are designed for a maximum operating pressure of 60 bar.

The cutting ring screw fittings feature captive cutting rings integrated into the union nut.

The fittings are available in packages of 50 or 100 pieces (depending on the design).

Other variants are available upon request.

Specifications

  • Pipe connection Ø6 mm and Ø8 mm
  • Connection thread 1/8" and 1/4"
  • Operating pressure max. 60 bar
  • Operating temperature max. +150 °C

Variants

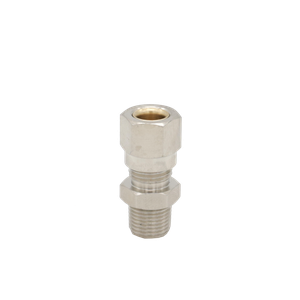

  • B 1 Straight male connector with external thread

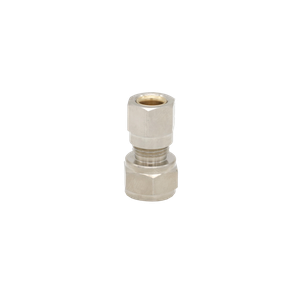

  • B 2 Straight female connector with internal thread

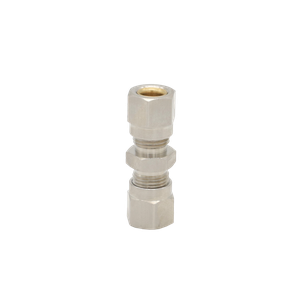

  • B 3 Union type

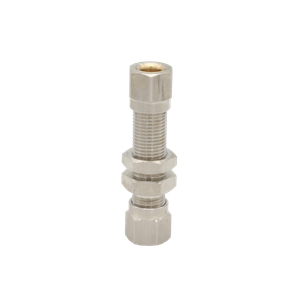

  • B 4 Bulkhead fitting

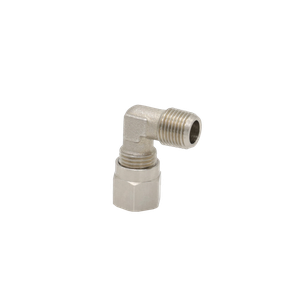

  • B 5 elbow male connector with external thread (90°)

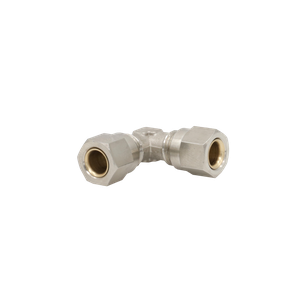

  • B 6 elbow union type connector (90°)

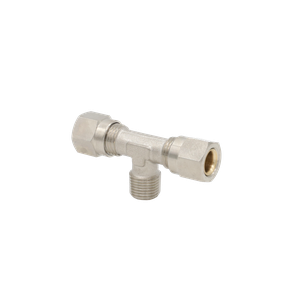

  • B 7 T-connector with axial connections

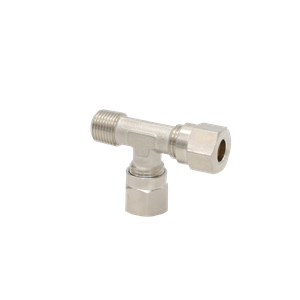

  • B 8 T-connector with 90° connections
  • B 9 T-union connector

  • Pipe connection
  • 6/4 Ø6 mm
  • 8/6 Ø8 mm
  • Connection thread
  • 1/8" internal or external thread with 1/8"
  • 1/4" internal or external thread with 1/8"
