Description
Extension sets for installation in SHEV mountings for connecting an additional ventilation actuator or ventilation cylinder.
This extension set is used to lock the skylight dome/arc dome in the closed position. For use in fittings (e.g. BF and BG), in conjunction with the MHV mechanical hook locking device.
When the SHEV unit is closed and during ventilation operation, the hook engages the bolt attached to the mounting bracket/ventilation actuator and is locked by spring force. When the SHEV fitting is opened, the hook is automatically released from the bolt; when closed, it automatically reengages the bolt.
Special versions of this type are available upon request.
Specifications
- Maximum holding force up to 6.600 N
- Ambient temperature range -25 °C to +110 °C
Variants

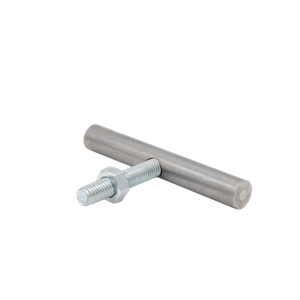

- SET-L/3-M8
- Locking bolt Ø12x84 mm, threaded rod M8x49 mm for the PODV 32/12, PODV 40/12, and PL 40/12 ventilation cylinders

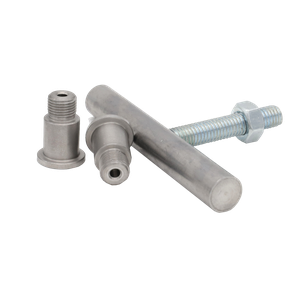

- SET-L/3-M8 - ST12-1/8"
- Locking bolt Ø12x84 mm, threaded rod M8x49 mm, including two ST 12-1/8" mounting plugs for mounting the E-xxx-230
MHV mechanical hook locking device
