Description
Our SG type linear actuators operate with an input voltage of 24 VDC. The housing is made of anodized aluminium, the push rod of anodized aluminium or steel.
The actuator is switched off in both end positions by internal limit switches. An electronic emergency stop protects the actuator against overload.

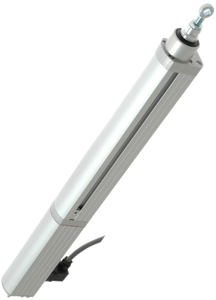

This electric 24 VDC linear actuator has a robust design and is supplied in a simple and functional housing. It can be infinitely suspended using the sliding blocks and bearing pins included in the scope of delivery.
Special versions of this type are available on request.
Also available with 48 VDC with the AM5 drive module as SG1Bx or SG1Cx.
Specifications
- Stroke 100 mm to 1800 mm
- Thrust up to ~6000 N
- Speed up to ~30 mm/s
- Voltage 24 VDC / 48 VDC with AM5
- Rated current 0,8 A to 12 A
- Protection class housing IP54
- Ambient temperature range -25 °C to +60 °C
Variants
- Rated current 0,8 A / 1,0 A / 1,3 A / 1,6 A / 2,0 A / 2,6 A / 4 A / 6 A / 8 A / 10 A / 12 A
- Eyebolt Ø8 mm or Ø10 mm
- Rod clevis GK6x12, GK6x24, GK8x16, GK8x32, GK10x20 or GK10x40
- Push rod aluminum / stainless steel
- E Integrated position indicator for both end positions (potential-free NC contacts, 24 VDC / 1 A)
- RAL painting of the actuator housing in a RAL color
- UM8 Bottom suspension with thread M8x11 mm deep
- U10 Bottom suspension with Ø10,2 mm hole
- U1/8 Lower suspension with 1/8” thread
- IP65 Protection class motor/electrics: IP65
