Description
Steel fixing plugs for mounting pneumatic cylinders and electric actuators with 1/8" threads.
The plugs do not supply air (but they have a vent hole).
The fixing plugs are available with a 12,5 mm or 18,5 mm diameter shaft.
Special designs available upon request.
Specifications
- connection thread 1/8"
- Shaft diameter Ø12 mm or Ø18 mm
- Shaft length 13 mm (standard), 18 mm (L) or 24 mm (XL)
Variants

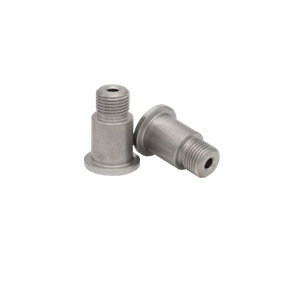

- ST 12-1/8" Fixing Plug Ø12 mm, 6 mm hexagon socket, 13 mm shaft length, 1/8" connection thread
- ST 12-1/8"-XL Fixing Plug Ø12 mm, 6 mm hexagon socket, 18 mm shaft length, 1/8" connection thread
- ST 12-1/8"-XXL Fixing Plug Ø12 mm, 6 mm hexagon socket, 24 mm shaft length, 1/8" connection thread

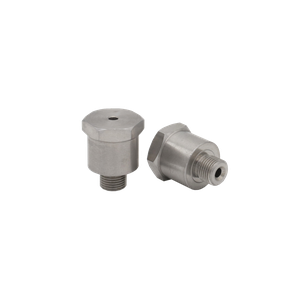

- STP 18-1/8"-L Fixing Plug Ø18 mm, 19 mm hexagon socket, 13 mm shaft length, 1/8" connection thread
