RWZ T101

Description

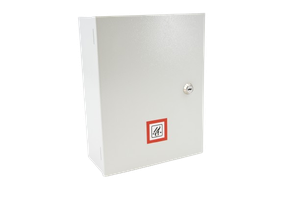

The staircase control centre RWZ T101 is the first product in a new generation of SHEVS control centres. In addition to a menu for setting functions, the control panel has a WIFI function for downloading software updates and for connecting and setting via the app K + G ControlCenter.

This SHEVS Control Centre allows the configuration of one SHE group and one ventilation group. 24 V= actuators can be controlled with a total output current of 2 A.

Besides the detectors, ventilation buttons with indication of position and an external wind and rain control of the type WRS are connectable. As an alternative, the option WRM 101 is available as internal wind and rain control. The options PKM 101 and LEM 101 can also be connected.

By changing the function type, the device can also be used as a impulse control, small extinguishing control center or impulse control for compressed gas generators.

K + G control center

Please note the approved accumulators for use in our SHEV control units and control systems.

Specifications

  • Mains voltage supply 230 VAC
  • Output current 2 A (24 VDC / 48 W)
  • SHEV groups 1
  • Ventilation groups max. 1
  • Signal lines 2
  • Accumulators 2 x 2 Ah / 12 V
  • Standby time 72 h in case of power failure
  • Environmental class 1/III -5 °C to +40 °C
  • Enclosure protection class IP40
  • Dimensions 231 mm x 303 mm x 114 mm

Variants

  • RWZ T101 2 A / 24 VDC, 2x 2 Ah / 12 V

  • Option ASM 101 Two 24 VDC outputs (e.g. for flashing light/more tone alarm siren), one input
  • Option BSM 101 One FCOOP input and one fault input
  • Option LEM 101 Ventilation in automatic, closed or manual mode
  • Option PKM 101 Two potential-free contacts (PK) for forwarding selectable system messages
  • Option WRM 101 Connection of one wind and/or rain sensor each
  • Module MA Convenient connection of a normally closed or normally open contact
