Description

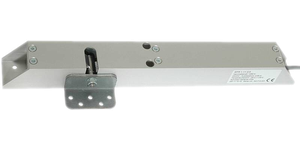

The electric window latch is a locking device that opens the locking hook and releases the locking bolt when the "Open" command is given.
If the window latch is used in conjunction with a 24 VDC electric actuator, an additional FGS sequence control unit is required.
This electric window latch is supplied without a locking bolt.
Accessories
- Locking bolt for EFR x.x1/ PFR x.0
- Locking bolt for EFR x.x2/ PFR x.1
Specifications
- Rated voltage 24 VDC
- Rated current 0,9 A
- Locking force 1250 N each
- Opening time approx. 5 s
- Connecting cable 2,5 m
- Ambient temperature range -20 °C to +60 °C
Variants
- EFR 1.11 simple locking for inward opening windows
- EFR 1.12 simple locking for outward opening windows
- EFR 1.21 simple locking for inward opening windows with latch in closed position
- EFR 1.22 single locking device for outward-opening windows with latch in the closed position
- EFR 2.11 double locking device for inward-opening windows
- EFR 2.12 double locking device for outward-opening windows
- EFR 2.21 double locking device for inward-opening windows with latch in the closed position
- EFR 2.22 double locking device for outward-opening windows with latch in the closed position
FGS 2a sequence control
