Description
Mounting brackets made of galvanized sheet steel for fitting pneumatic cylinders and electric actuators.
The mounting brackets are designed as standard with a 12,5 mm diameter mounting hole (for swivel screw fittings, mounting plugs, and bearing bolts with a 12 mm diameter). Alternatively, mounting brackets with an 18,5 mm diameter mounting hole (for swivel screw fittings, mounting plugs, and bearing bolts with a 18 mm diameter) are also available.
Special designs are available upon request.
MK 47-x
- Mounting brackets for pneumatic cylinders Pxxx 32, Pxxx 40, Dxxx 40 as well as electric actuators of G and SG series.
MK 56-x
- Mounting brackets for pneumatic cylinders Pxxx 50, Dxxx 50 as well as electric actuators of G and SG series.
MK 70-x
- Mounting brackets for pneumatic cylinders Pxxx 63, Dxxx 63
MK 93-x
- Mounting brackets for pneumatic cylinders Pxxx 80
MK 102-x
- Mounting brackets for pneumatic cylinders of P and D types with variable suspension using KST clamping ring.
Variants

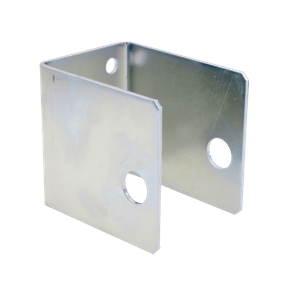

- MK 47-1 47 mm inner width, one mounting hole Ø12,5 mm

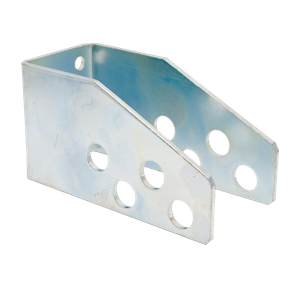

- MK 47-2 47 mm inner width, 4 mounting holes Ø12,5 mm

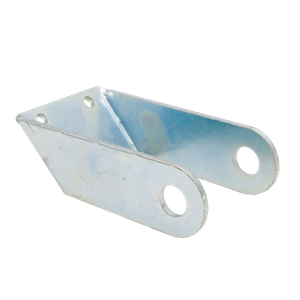

- MK 47-3 47 mm inner width, one mounting hole Ø12,5 mm
- MK 47-3/18 47 mm inner width, one mounting hole Ø18,5 mm

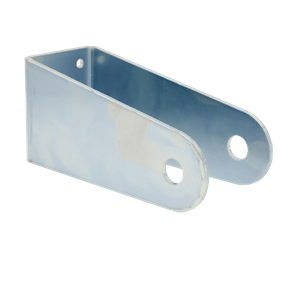

- MK 47-4 47 mm inner width, one mounting hole Ø12,5 mm
- MK 56-1 56 mm inner width, one mounting hole Ø12,5 mm
- MK 56-2 56 mm inner width, 4 mounting holes Ø12,5 mm
- MK 56-2/18 56 mm inner width, 4 mounting holes Ø18,5 mm

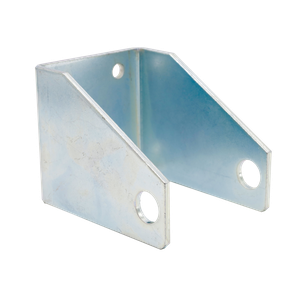

- MK 56-3 56 mm inner width, one mounting hole Ø12,5 mm mm
- MK 70-1 70 mm inner width, one mounting hole Ø12,5 mm
- MK 70-1/18 70 mm inner width, one mounting hole Ø18,5 mm
- MK 93-1 93 mm inner width, one mounting hole Ø12,5 mm
- MK 102-1 102 mm inner width, one mounting hole Ø12,5 mm
- MK 102-2 102 mm inner width, one mounting hole Ø18,5 mm
