Description

These optional modules are installed in SHEV control panels to implement various additional functions.

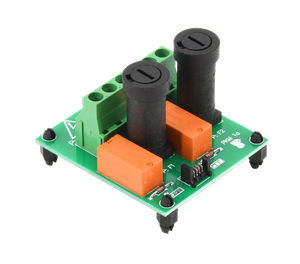

Option PK

This option module is installed in SHEV Control Centres / Controls. It has one potential-free contact each for forwarding alarm and/or malfunction messages.

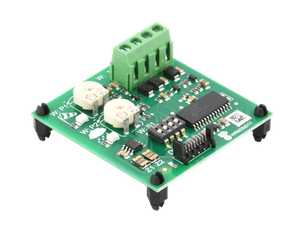

Option WRM

The module WRM is installed in SHEV Control Centres and Controls. In the event of wind / rain, it receives a corresponding signal from the wind / rain sensor and sends a closing command to the Control Centre / Control.

Since the sensitivity is adjustable for both sensors, the module can be used under different climatic conditions.

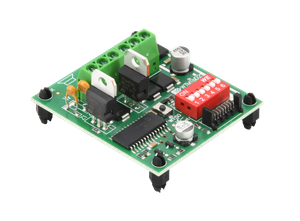

Option WTM

This module is installed in SHEV Control Centres and controls warning devices like strobe lights and multiple tone sounders.

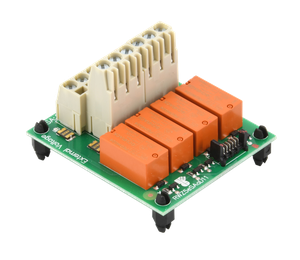

Option PK-SA

This option module is installed in RWZ 5 type control centres. It has potential-free contacts for forwarding the indication of position OPEN.

Specifications

General

  • Ambient temperature -5 °C to +40 °C

Option PK

  • Contact rating 5 A; 30 VDC, 230 VAC
  • Dimensions (W x H x D): 51 mm x 58 mm x 43 mm

Option WRM

  • Dimensions (W x H x D) 55 mm x 57 mm x 26 mm

Option WTM

  • Maximum output current at 24 VDC:
    • - Multi-tone siren 100 mA
    • - Strobe light 250 mA
  • Dimensions (W x H x D) 51 mm x 58 mm x 26 mm
