Optional modules series 101

These latest generation option modules are installed in SHEV control panels / control systems for implementation of various additional functions.

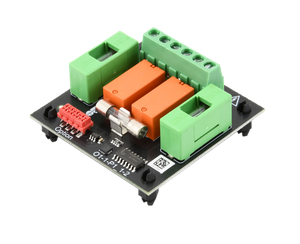

Option PKM 101

• This option module is installed in SHEV Control Centres / Controls. It has two potential-free contacts for forwarding selectable system messages.

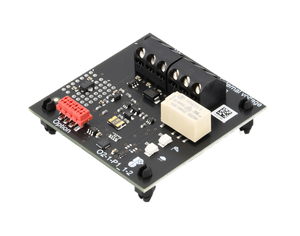

Option WRM 101

• The module WRM 101 is installed in SHEV Control Centres and Controls. In the event of wind/rain, it receives a corresponding signal from the wind / rain sensor and sends a closing command to the Control Centre / Control.
• Since the sensitivity is adjustable for both sensors, the module can be used under different climatic conditions. In addition to the terminals for the sensors, the option has a potential-free contact (PFC) for forwarding selectable messages.

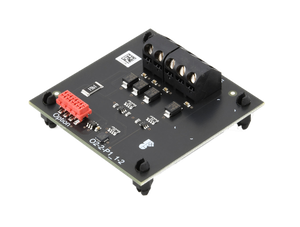

Option LEM 101

• This option module is installed in SHEV Control Centres / Controls. It enables ventilation in automatic mode, CLOSE mode, or manual mode.
• An automatic switch (e.g. thermostat or timer) and a selector switch can be connected for this purpose. The operating mode is selected via the selector switch.

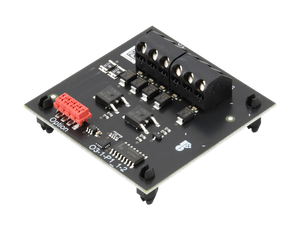

Option ASM 101

• This optional module is installed in smoke and heat extraction control panels / control units. It forwards selectable system messages via two outputs (e.g. to warning devices or door magnets).
• It also features an input for a potential-free contact (NO or NC) for processing external messages.

Option BSM 101

• One FACP input and one fault input
