RWZ 5f-x.y-zz

de

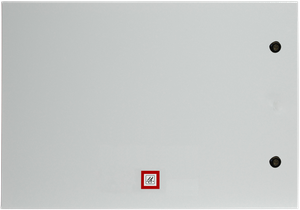

RWZ 5f-MS

Description

This certified and powerful SHEV control center enables the installation of up to four SHEV groups and up to eight ventilation groups. The total output current available is 60 A or 80 A.

The configuration of the SHEV and ventilation groups is individually adapted to your requirements ex works so that commissioning can be carried out easily and efficiently.

An MA module (convenient connection of a normally closed or normally open contact) is supplied with the control panel as standard.

Please note the approved accumulators for use in our SHEV control units and control systems.

Specifications

  • Mains voltage supply 400 VAC
  • Output current 60 A or 80 A
  • SHEV groups 1 to 4
  • Ventilation groups 1 to 8
  • Signal lines 9
  • Standby time 72 h in case of mains failure
  • Environmental class 1/III -5 °C to +40 °C
  • Enclosure protection class IP30
  • Dimensions 800 mm x 600 mm x 255 mm

Variants

  • RWZ 5f-x.y-60 60A / 24VDC, 2x 26 Ah / 12 V
  • RWZ 5f-x.y-80 80A / 24VDC, 2x 42 Ah / 12 V
  • x = Number of SHEV groups (1-4)
  • y = Number of ventilation groups (1-8)

  • Option PK Potential-free contacts (PK) for forwarding alarm and/or fault messages
  • Option WRM Internal wind and rain control for connecting an anemometer and/or rain sensor
  • Option WTM Control of external warning devices in the event of an alarm or fault
  • Option PK-SA Potential-free contacts for forwarding the position indicator

Accreditations

ISO 21927-9:2012, EN 12101-10:2005
