Description

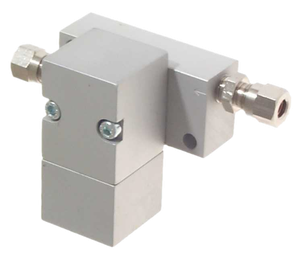

This VdS approved sequence valve is designed for the pressure-dependent control of one SHEVS cylinder.
The valve switches when the inlet pressure is greater than the minimum switching pressure. The CO2 inlet and CA outlet are then connected.
For pipe connection of the valve, two male connectors 1/8″ (e.g. B 1-6/4-1/8") will be required additionally.
The design of the SHEVS may require reliable venting of the piping.
Different switching pressures according to data sheet.
Specifications
- Nominal pressure 7 bar
- Minimum switching pressure 10,2 bar
- Maximum operating pressure 60 bar
- Nominal valve diameter 0,8 mm
- Connection thread 1/8"
- Ambient temperature range -25 °C to +110 °C
Variants
- ZSV (7bar) sequence valve with a nominal pressure of 7 bar
- ZSV (7bar)-2xB1-6/4 sequence valve with a nominal pressure of 7 bar including a straight screw fitting with a 6 mm pipe connection
Accreditations
VdS G503011
