Description

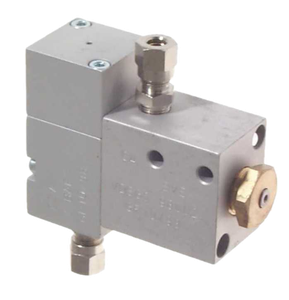

This VdS approved sequence valve is designed for the pressure-dependent control of one SHEVS cylinder with pressurising valve for supplying air to the cylinder while following idle.
In normal position (pressure below 7 bar), the CA outlet has exhausted, allowing the SHEVS cylinder to be pulled along by a ventilation actuator. When the CO2 inlet is charged with a pressure of more than 10 bar, the valve reverses, connecting the CO2 inlet to the CA outlet. After a system exhaust, the valve will automatically reset.
For pipe connection of the valve, two male connectors 1/8″ (e.g. B 1-6/4-1/8") will be required additionally.
The design of the SHEVS may require reliable venting of the piping.
Different switching pressures according to data sheet.
Specifications
- Nominal pressure 7 bar
- Minimum switching pressure 10,2 bar
- Maximum operating pressure 60 bar
- Nominal valve diameter 0,8 mm
- Nominal exhaust diameter 4,0 mm
- Connection thread 1/8"
- Ambient temperature range -25 °C to +110 °C
Variants
- ZSV-BVE (7bar) Sequence valve, nominal pressure 7 bar with integrated exhaust valve
- ZSV-BVE (7bar)-2xB1-6/4 Sequence valve, nominal pressure 7 bar with integrated exhaust valve including straight screw fittings with 6 mm pipe connection
Accreditations
VdS G503011
