Description

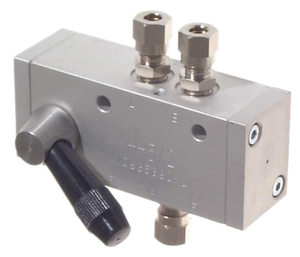

This 5/2 ways hand lever valve is designed for the manual OPEN / CLOSE control of SHE or ventilation cylinders. Thanks to its modular design, the valve offers numerous options for expansion.
- Manual operation by turning the hand lever:
- Hand lever up = OPEN
- Hand lever down = CLOSED
The valve can also be electrically controlled OPEN / CLOSE using electrical add-on components (EA / EZ), with one add-on optionally having priority over the other.
The pneumatic add-on components (PA / PZ) also allow the valve to be pneumatically controlled OPEN / CLOSE, with one add-on component optionally having priority over the other.
Factory-installed screw connections available upon request.
Specifications
- Max. operating pressure 16 bar
- Max. operating pressure with electrical add-on component 10 bar
- Rated data for electrical add-on component 0,20 A / 24 VDC
- Rated data for electrical add-on component 0,04 A / 230 VDC
- Control pressure for pneumatic cylinder min. 3 bar
- Nominal valve diameter 4,0 mm
- Connection thread 1/8"
- Ambient temperature range -15 °C to +55 °C
Variants
- HH5/2 Hand lever valve
- HH5/2-EA230-EZ230 Electric OPEN / CLOSE 230VAC
- HH5/2-EA230-LFZ Electric CLOSE 230VAC (deenergized close)
- HH5/2-EZ24-LFZ Electric CLOSE 24VDC (deenergized close)
- HH5/2-EZ230 Electric CLOSE 230VAC
- HH5/2-EZ24 Electric CLOSE 24VDC
- HH5/2-EA24-EZ24 Electric OPEN / CLOSE 24VDC
- HH5/2-PA-PZ Pneumatic OPEN / CLOSE
