Hand lever valve with priority valve

de
HH5/2-VVAZ-5xB1-6/4

Description

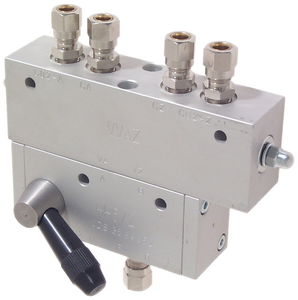

Valve combination consisting of a hand lever valve HH5/2 and a mounted priority valve (VVZ or VVAZ) for controlling smoke and heat extraction and ventilation units. Thanks to its modular design, the valve offers numerous expansion options.

  • Manual operation by turning the hand lever:
  • Hand lever up = OPEN
  • Hand lever down = CLOSED

Using electrical add-on components (EA / EZ), the valve can also be electrically controlled OPEN / CLOSED, whereby one attachment can optionally have priority over the other.

Using pneumatic add-on components (PA / PZ), the valve can also be pneumatically controlled OPEN / CLOSED, whereby one add-on component can optionally have priority over the other.

For details on VVZ and VVAZ, see Priority Valves.

With factory-installed screw fittings upon request.

Specifications

  • Outlet operating pressure max. 60 bar
  • Inlet operating pressure max. 16 bar
  • Operating pressure with electro add-on component max. 10 bar
  • CO2 connection control pressure min. 4 bar
  • Nominal data of electrical add-on component 0,20 A / 24 VDC
  • Nominal data of electrical add-on component 0,04 A / 230 VDC
  • Control pressure of pneumatic triggering min. 3 bar
  • Nominal valve diameter 4,0 mm
  • Connection thread 1/8"
  • Ambient temperature range -15 °C bis +55 °C

Variants

  • HH5/2-VVZ Hand lever valve with two-pipe priority valve
  • HH5/2-VVAZ Hand lever valve with on/off priority valve

  • Attachments
  • -EA230-EZ230 Electric OPEN / CLOSE 230 VAC
  • -EA230-LFZ Electric CLOSE 230 VAC (deenergized close)
  • -EZ24-LFZ Electric CLOSE 24 VDC (deenergized close)
  • -EZ230 Electric CLOSE 230 VAC
  • -EZ24 Electric CLOSE 24 VDC
  • -EA24-EZ24 Electric OPEN / CLOSE 24 VDC
  • -PA-PZ Pneumatic OPEN / CLOSE
